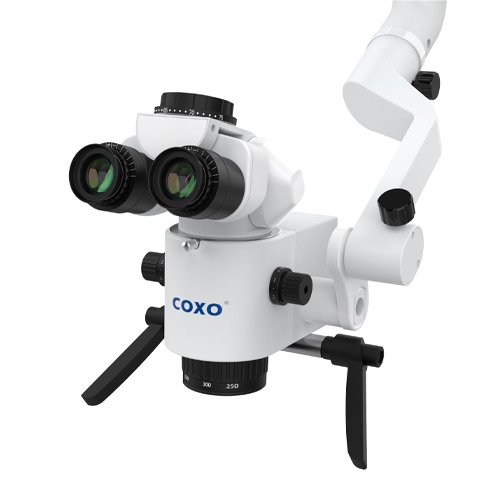

Operating Microscope
- 0°–180° Adjustable Binocular Tube:
Ergonomically designed to ensure optimal clinical posture for clinicians, effectively reducing and preventing muscle strain in the lower back, neck, and shoulders, providing clinicians with relief from cervical spondylosis and lumbar disc herniation.
- Precise Interpupillary Distance Adjustment:
A precise interpupillary distance adjustment knob with an accuracy of less than 1 mm allows users to quickly adjust to their preferred distance.
- 120° Adjustable Balance Arm:
Features a unique dual-joint torque adjustment function, setting it apart from other products in its class both domestically and internationally. When various accessories such as SLR cameras, video cameras, webcams, and assistant lenses are attached to the microscope lens, the damping torque can be adjusted to achieve a balanced microscope head, ensuring comfortable and smooth operation.
- Binocular Tube Tilting Function:
An ergonomic function specifically designed for clinicians, allowing the microscope to tilt left or right while maintaining a horizontal observation position without changing the clinician’s posture.
- German Schott Lenses, Multi-Coated:
Utilizing world-class German optical lenses with multi-coated optical layers and apochromatic design, these lenses offer superior optical performance, a large depth of field, high definition, and high resolution.
- VarioDist High-Zoom Objective:
With a focusing range of up to 110 mm, it covers the entire depth of the oral cavity. Users simply set the optimal ergonomic position and adjust the zoom knob to view every detail of the entire oral cavity, eliminating the need to readjust the microscope body position and improving efficiency.
- High Eyepoint Wide-Angle Eyepiece:
This high-eyepoint wide-angle eyepiece features eyecup and diopter adjustment. With a field of view greater than 50 degrees, clear visualization is maintained even when the eye is slightly further away. It provides comfortable observation and is particularly suitable for clinicians who wear glasses.
- 6-Level Manual Zoom:
The 6-level manual zoom buttons located on both sides of the microscope lens allow quick and convenient switching between high, medium, and low magnification levels.
- Yellow and Green (Red-Free) Filters:
Yellow Spot: Prevents resin materials from curing too quickly during irradiation.
Green Spot: Allows clear visualization of tiny nerves and blood vessels in a surgical environment.
- Built-In Full HD Camera Module:
Built-in HDMI full HD 1080P digital camera system achieving 1920 × 1080 progressive scan FULL HD image format. During treatment, images can be output or recorded through connected HDTVs, monitors, displays, or HDMI hard disk recorders, facilitating clinical work, teaching, research, and patient communication.
- Built-In Standard Definition Camera Module:
Built-in 720P standard-definition analog camera system capable of outputting or recording images through connected monitors, displays, or standard-definition hard disk recorders.
- Wireless Full HD Video Transmission:
Based on the latest WHDI technology, delivering high-quality, uncompressed, latency-free, wire-free full HD video transmission with speeds up to 3 Gbps and compliance with global 5 GHz spectrum regulations.
